UVF UV smoke hood with panel air supply for fresh air replacement

Characteristics

The UVF smoke hood utilizes the latest vertical surround and horizontal AIRJET technologies. This system reduces the exhaust volume required to dissipate the same heat load by 30% to 40% compared to traditional smoke hoods. The BRETON UV-C technology reduces the odor in the emitted gases. It also offers an optional LCD touchscreen (Evelock touchscreen). The front integrates a replacement fresh air supply device, enhancing the efficiency of the smoke hood and creating a comfortable and clean environment in the kitchen. The efficient HG cyclone filter effectively reduces the deposition of grease in the exhaust system, improving hygiene conditions, and maximizing fire safety. It also reduces the cost of pipe system cleaning. An in-built position air supply device enhances the comfort of the operators. The TCB interface incorporates a balance device for regulating the exhaust and fresh air volume. The ASL kitchen-specific LED lighting energy-saving system. SUS304 stainless steel structure.

Product Introduction

1
Breton® UV-C Photolysis Oxidation Technology

This is a system used in commercial kitchens for "oil removal" and "odor mitigation". The Breton UV-C lamps have two wavelengths: 254nm and 185nm. The 254nm wavelength UV cuts the oil molecule chains, forming small oil molecules. The 185nm wavelength UV reacts with oxygen in the air to produce ozone, which further oxidizes the small oil molecules into water, carbon dioxide and trace amounts of white powder.
2
AIRJET Technology

This is a system designed to "prevent the escape of cooking fumes" and "improve air quality and comfort". The horizontal air nozzles utilize the Venturi effect to propel the cooking fumes and steam towards the exhaust chamber. The vertical air nozzles create an air curtain around the smoke hood, increasing the sealing volume and protecting the capture area from the influence of air flow. Compared to traditional smoke hoods, the AIRIET technology can reduce the exhaust volume by up to 30-50%, enhancing the ability to capture and suppress cooking fumes.
3
ASL Commercial Kitchen Cooking Professional Lighting System

It offers multiple lighting brightness options and specific combinations. Compared with traditional fluorescent lamps, it can save 70% of energy at the same brightness level. After 60,000 hours of use, it still maintains the lighting level. The bezel-less design is easy to clean, reducing joints and corners. It can be embedded and installed on the exhaust chamber.
4
HG Cyclone Oil Filter Technology

This is an efficient technology for extracting and discharging cooking fumes. Based on the multi-stage cyclone separation principle, the oil screen filter is made up of multiple air duct structures, generating high-speed centrifugal force, which effectively separates and collects cooking fumes and water vapor. The removal efficiency for particles as small as 10 micrometers is up to 95%. It is manufactured from SUS304 brushed stainless steel. The double-layer structure provides a larger air passage area, reduces pressure loss during passage through the filter, lowers the energy consumption and emission noise of the exhaust fan, and reduces operating costs.
5
Position ventilation system

This is a ventilation technology used to improve the working environment in the kitchen. The position air supply system adopts the displacement ventilation principle, making the chefs feel comfortable. The air supply outlets are located at the lower edge of the smoke hood and can be adjusted by a regulating device to control the air volume and direction. By adjusting the air supply, a fresh air curtain can be generated around the cooking equipment to reduce the radiant heat released by the cooking equipment.
6
The front low-speed air exchange and supply air system of the cooking fume extractor

The air supply design at the front of the smoke hood is based on the principle of replacement, using the law of energy conservation to distribute fresh air throughout the kitchen. Combined with the replacement ventilation system, it reduces the required cooling capacity while maintaining the temperature in the active area. Compared with traditional fresh air diffusers, it reduces the exhaust volume of cooking exhaust from the smoke hood, saving energy and costs.
7

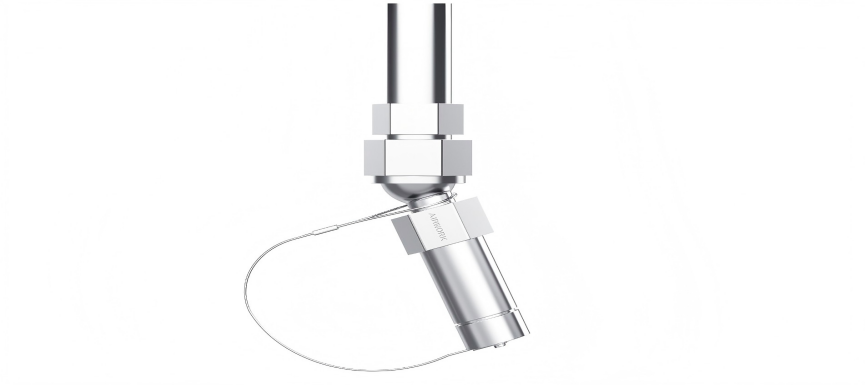

Fire extinguishing system (optional)

As part of the basic equipment of CKVS, it is recommended to install the fire suppression system listed in UL300. This system can adopt the type of Ansul wet chemical or similar technology conditions. The fire suppression system should include all the necessary detectors, wiring, fire response mechanisms, liquid storage tanks, and fire extinguishing agents.
8
The Role of Touch Screen (ATS) in the Management of Smart Kitchen Equipment

The AIRWORK touch screen is a part of the intelligent control platform and is specifically designed for Elwalk products. It includes the BRETON UV-C control system, the EMS intelligent frequency conversion system, the PSG ventilation monitoring system, the automatic washing control system, etc. The LCD touch screen human-machine interface is designed simply, facilitating intelligent management by customers and reducing the risk of incorrect operations. It has the function of automatic fault detection and provides fault records.
